FPC LINED

Part Number 618L30893-OIT

Model:681L30893-OIT
Flow Rate:1335GPM/Housing

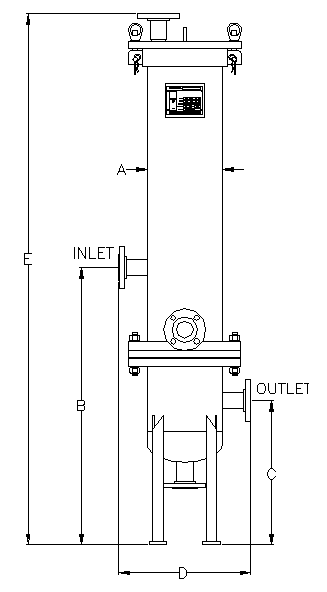

Dimensions:

A (OD)
30”
B (Floor to Inlet)
44”
C (Floor to Outlet)
22”
D (Face to Face)
46”
E (Overall Height)
T.B.D.

Design and Construction:

Filter Elements:
QTY:89×30” LG x 2-1/2” OD x DOE
Design Pressure:
150 PSIG
Design Temperature:
250 °F
Corrosion Allowance:
None
Radiography:
None
Design Standard:
ASME SEC VII DIV I
Body Material:
Carbon Steel
External Welded Attach:
Carbon Steel
Closure Gasket:
Buna-N O-Ring
Closure Bolts:
Swing bolt c/w eyenuts (carbon steel yellow zinc plated)
Element Support:
Polypro adaptors and top seat assemblies
Coverlift:
Mechanical Headlift
Inlet/Outlet:
( 2) – 8 “ 150 lb RFSO Flange
Vent:
(1) – 2” 150 lb RFSO Flange
Diry Drain:
(1) – 2” 150 lb RFSO Flange
Clean Drain”
(1) – 2” 150 lb RFSO Flange
