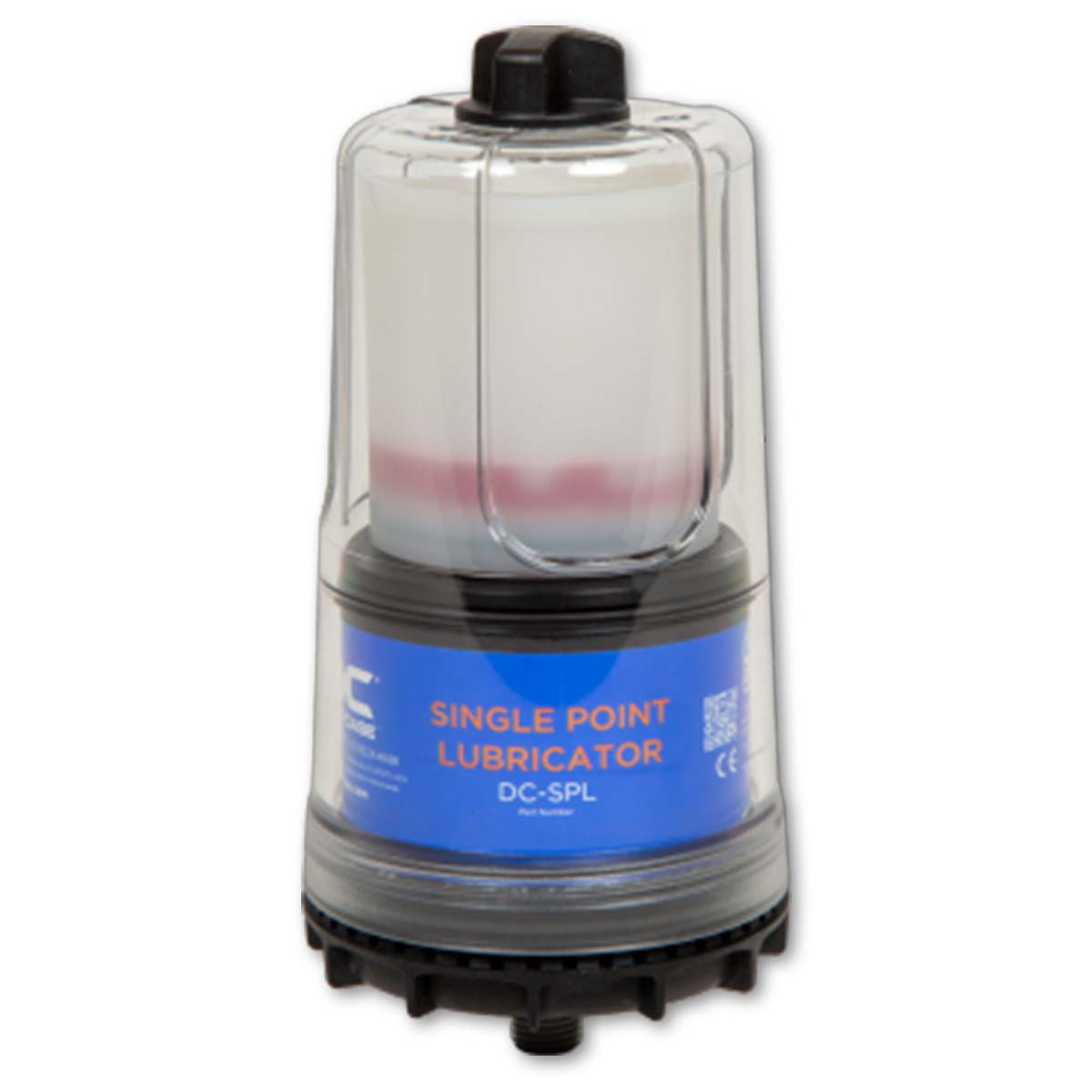

The Des-Case Single Point Lubricator supplies a controlled, pre-set amount of oil or grease to a single lubrication point, making maintenance faster and more reliable. It prevents over- and under-lubrication, helps reduce downtime, and extends component life. Built for industrial use, it’s easy to install, has clear service indicators, and offers selectable output options so maintenance teams can standardize lubrication across machines.
Features
- Replaceable batteries
- Suitable for oil and grease
- Easy to install and set-up
- Remote mounting up to 33 ft (10 m)
Applications
- Bearings
- Chains
- Pumps
- High-Humidity
- Electric Motors
Industries
- Food & Beverage
- Power Generation
- Manufacturing
- Oil & Gas
Technical Specifications User Manual
Specifications
| Reservoir Volume 4 fl. oz (120 ml) | Power Supply 2x 1.5V AA batteries | Temperature Range -4°F to 140°F (-20°C to 60°C) | Number of Outlets 1 |
| Lubricants Oil ISO VG: 31-680 cSt Grease up to NLGI-2 | Drive Electromechanical | Discharge Settings 1, 3, 4, 12 or 24 months | Max. Tube Length 32 ft (10 m) |
| Max. Operating Pressure 290 psi (20 bar) | Protection Class IP67 |
