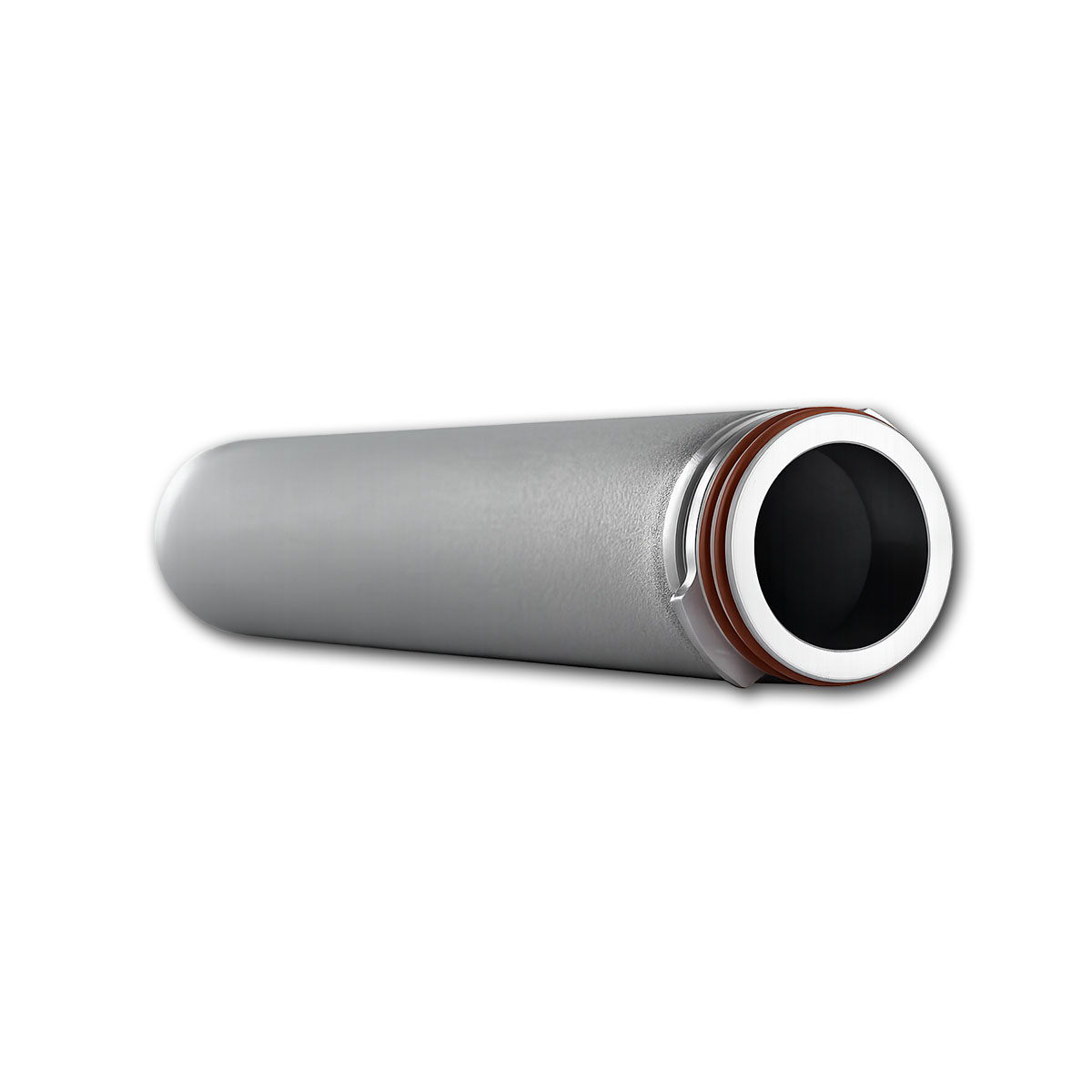

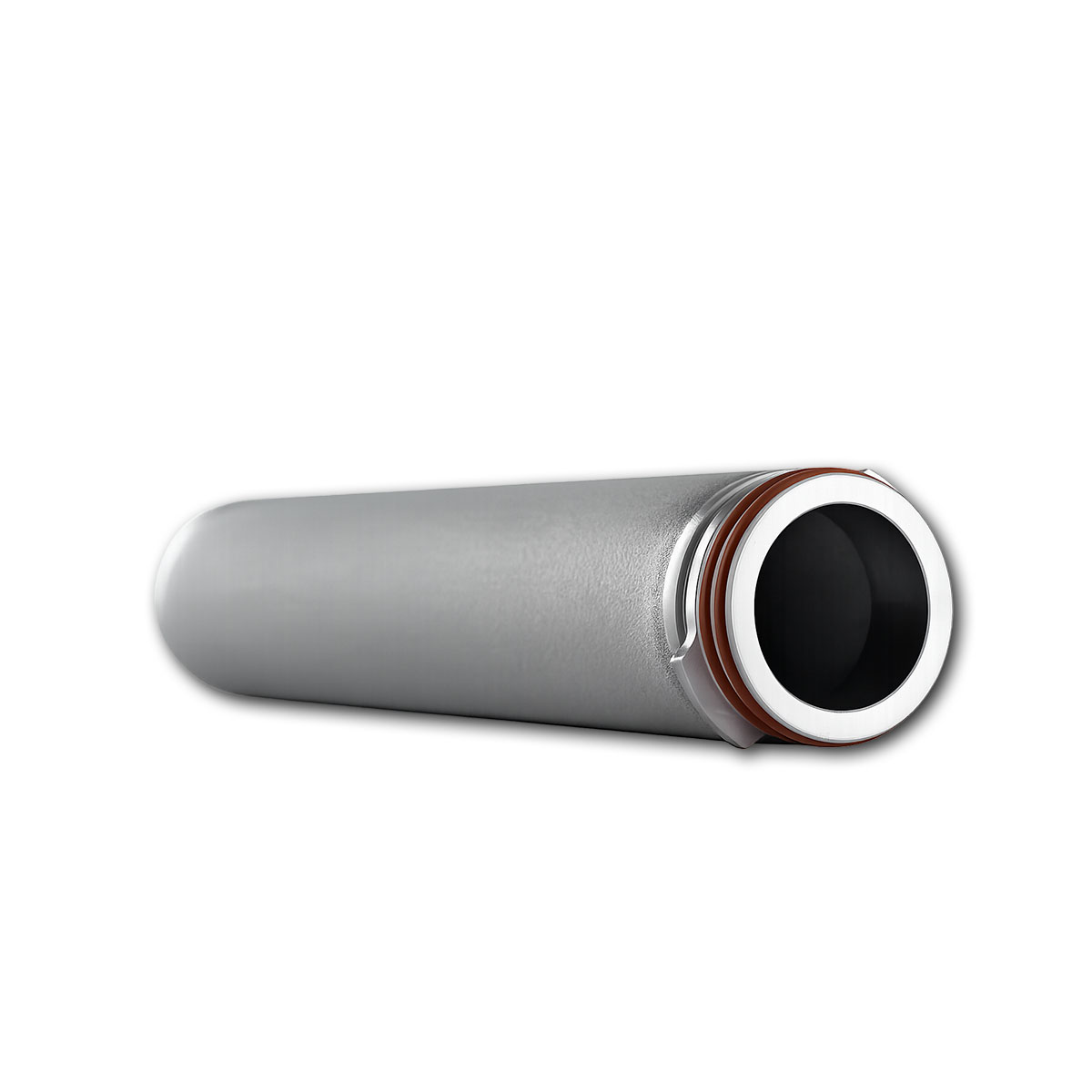

MSS filters provide reliable and efficient filtration for steam, high-temperature, and corrosive gases and liquids. It has an extended service life thanks to its robust construction and durable materials.
Key features:
- High flow and low pressure drop
- Absolute retention rate (gas)
- Wide chemical compatibility
- Suitable for repeatable cleaning
- Regeneration by ultrasonic bath
Applications:
Thanks to its chemical compatibility, MSS series filters are widely used in Food & Beverage, Pharmaceutical, Cosmetics and Chemical Industries.
- Steam, gases and liquids
- Culinary steam filtration
- High temperature gas and water filtration
- Oxidant and corrosive streams
| Specifications | ||||
|---|---|---|---|---|
| Micron ratings (μm) | 1 μm | 5 μm | 25 μm | |
| Cartridge length | 10" | 20" | 30" | UF sizes (see configuration) |
| Cartridge diameter | 42mm - 140mm | |||
| Material of construction | ||||
| Filter media | 316L Stainless steel | |||
| End caps | 304 Stainless steel | |||
| Seal | EPDM, Fluoraz | |||
| Maximum operating temperature | 210°C (EPDM), 250°C (Fluoraz) | |||
| Maximum differential pressure forward (cartridges) | 5.0 bar | |||
| Recommended changeout differential pressure | 2.5 bar | |||
