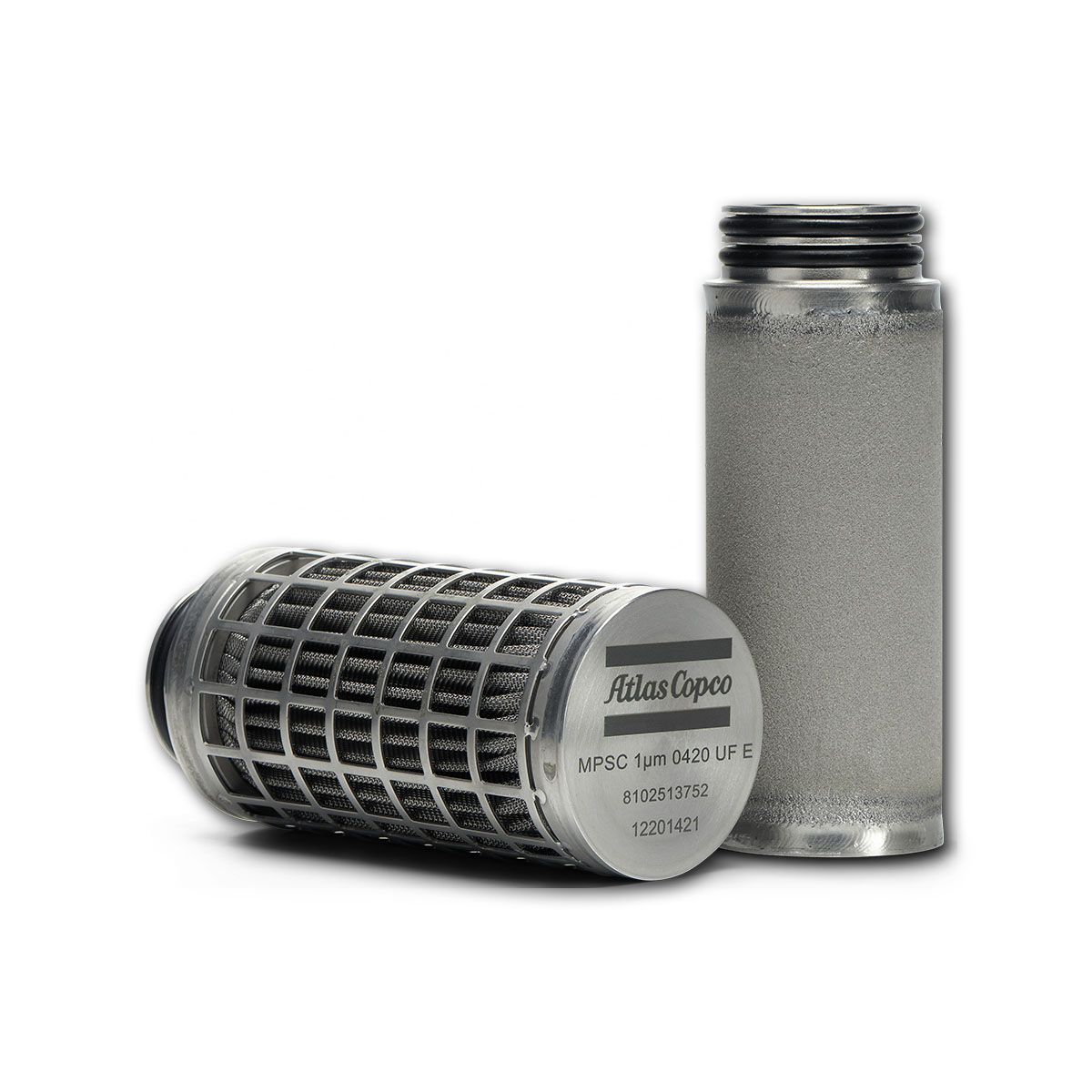

MPSC filters provide reliable and efficient filtration for steam, high temperature or corrosive gases and liquids. Its pleated construction in combination with large surface area provides high dust holding capacity. It has an extended service life thanks to its robust construction and durable materials.
Key features:
- High flow and low pressure drop
- Absolute retention rate (gas)
- Wide chemical compatibility
- Suitable for repeatable cleaning
- Regeneration by ultrasonic bath
Applications:
Thanks to its chemical compatibility MPSC series filters are widely used in Food & Beverage, Pharmaceutical, Cosmetics and Chemical Industries.
- Steam, gases and liquids
- Culinary steam filtration
- High temperature gas and water filtration
- Oxidant and corrosive streams
| Specifications | ||||
|---|---|---|---|---|
| Micron ratings (μm) | 1 μm | 5 μm | 25 μm | |
| Cartridge length | 10" | 20" | 30" | UF sizes (see configuration) |
| Cartridge diameter | 42mm - 140mm | |||
| Material of construction | ||||
| Filter media | 316L Stainless steel | |||
| End caps | 304 Stainless steel | |||
| Seal | EPDM, Fluoraz | |||
| Maximum operating temperature | 210°C (EPDM), 250°C (Fluoraz) | |||
| Maximum differential pressure forward (cartridges) | 5.0 bar | |||
| Recommended changeout differential pressure | 2.5 bar | |||
