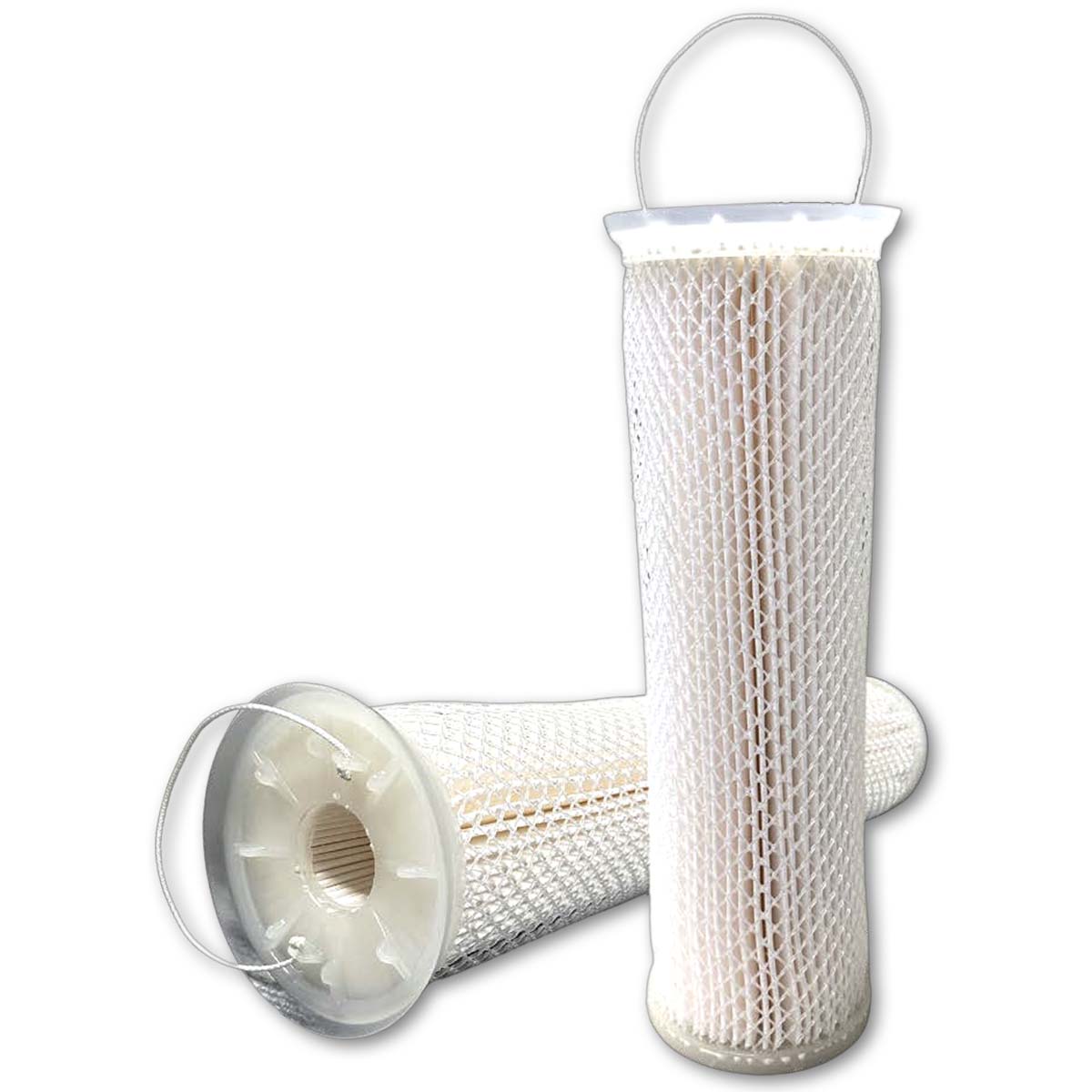

This variant of the 600 Series Deep Pleated Cartridge is designed to fit into legacy Pall-FSI X100 and MWF X100+ vessels without a basket support. The specially designed X01 end cap design provides an O-ring side seal without housing modifications or the need for a cartridge plate. The deep pleat media is secured with polyethylene netting.

Features

Polypropylene or polyester filter media
Micron ratings from 1 to 40
Fits Pall-FSI X100 and MWF X100+ filter vessels
Polypropylene and polyester materials meet FDA regulations for food contact under CFR 21, Section 177.1520
Optimal application conditions for economical performance: 15 GPM at maximum 20 PSID (Size X01)
Broad chemical capability
Temperature ratings to 200° F (PO), 275° F (PE)
Silicone-free construction
Polyester cord handle standard

Data Sheet
