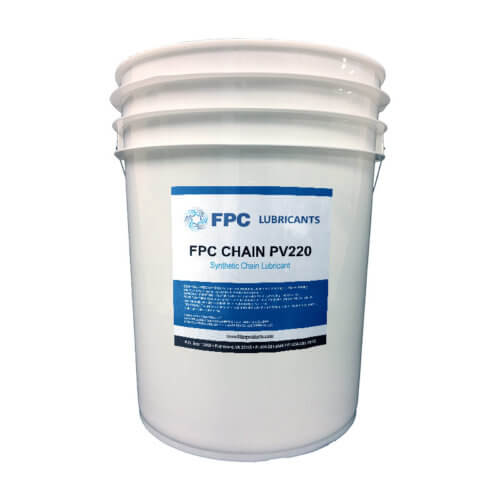

FPC CHAIN PV220

$586.74$6,221.19

Description

FPC CHAIN PV220 is a synthetic, premium chain lubricant designed for extreme high-temperature applications, especially when H-1 lubricants are required for incidental contact. Formulated from pure-synthetic, food-grade polyolester base stocks, FPC CHAIN PV220 provides excellent thermo-oxidative stability, excellent anti-wear protection, and a reduction of deposits and coking over hydrocarbon or PAO-based lubricants. The proprietary formulation of FPC CHAIN PV220 also provides low volatility, low smoking, and operability over a wide temperature range.

Technical Information

TYPICAL PROPERTIESTEST METHODFPC CHAIN PV220
Viscosity @ 40°C, cStASTM D445224
Viscosity @ 100°C, cStASTM D44519.8
Viscosity IndexASTM D2270 101
Flash Point, °C/°FASTM D92>300
Pour Point, °C/°FASTM D97-23
Specific GravityASTM D40520.99 – 1.0
Four Ball Wear, mmASTM D41720.28
Evaporation Loss, 22 hrs @ 225°FASTM D9720.000
Four Ball Wear, 40 kg, 500 rpm, 1 hr. @ 200°CASTM D41720.42 mm
Four Ball Wear, 40 kg, 1200 rpm, 1 hr. @ 200°CASTM D4172 0.49 mm
Evaporation Loss, 6.5 hrs. @ 204°CASTM D25951.32%
Evaporation Loss, 24 hrs. @ 204°CASTM D25952.04%

Data Sheet Case Study

FPC Lubricants are proudly manufactured in the USA, under the strictest ISO 9001:2015 quality management standards.

Typical Industrial Applications

  • High-temperature oven chains for food processing

Performance Benefits

  • Excellent oxidative and thermal stability
  • Reduced sludge and deposit formation
  • Reduced energy costs from ester formulation
  • Good water and rust resistance
  • High flash point
  • Complies with FDA 21 CFR 178.3570 H-1 for incidental contact

Additional information

Weight N/A
Dimensions N/A
