Description

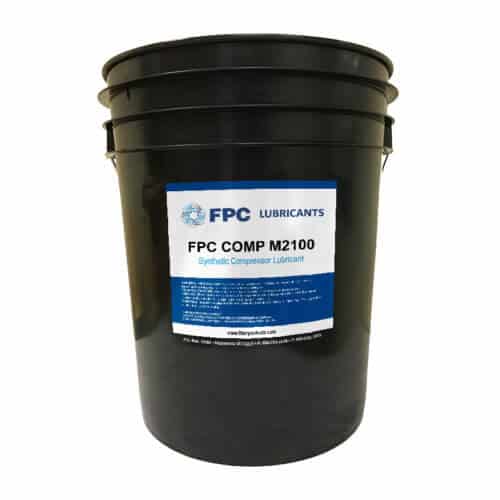

The FPC COMP M Series is a group of high performance, multifunctional lubricants designed for use in many industrial applications. These are considered environmentally friendly since they are zinc free. These premium petroleum oils are the answer where OEM specifications are critical. They are very useful where frequent change-outs are necessary due to poor environments prone to contamination from dust, acids, solvents, gases, or other contaminants. FPC COMP M2100 has a service life up to 2,000 hours in reciprocating compressors. The additive chemistry found in this series provides high performance ashless hydraulic fluids and compressor oils with antiwear properties.
Cross-Reference
This lubricant is equivalent to the following products.
| Company | Product |
|---|---|
| Champion | ChampLube |
| CompAir | Hydrovane 2000 |
| Curtis | RC-1000 A |
| Ingersoll Rand | XL-300 |
| Kaeser | Sigma M-100 |
| Quincy | Quincip 100 |
Technical Information
| TYPICAL PROPERTIES | TEST METHOD | FPC COMP M2100 |
|---|---|---|
| ISO Grade | ASTM D2422 | 100 |
| Viscosity @ 40°C, cSt | ASTM D445 | 95 |
| Viscosity @ 100°C, cSt | ASTM D445 | 11.5 |
| Viscosity Index | ASTM D2270 | 109 |
| Flash Point, °C/°F | ASTM D92 | 226/439 |
| Pour Point, °C/°F | ASTM D97 | -29/-20 |
| Copper Corrosion | ASTM D130 | 1b |
| Rust – Sea Water | ASTM D665B | Pass |
| Specific Gravity | ASTM D4052 | 0.88 |
FPC Lubricants are proudly manufactured in the USA, under the strictest ISO 9001:2015 quality management standards.
Typical Industrial Applications
- Reciprocating compressors
- High pressure hydraulic systems
Performance Benefits
- Excellent rust and oxidation inhibitors
- Zinc free
- Will not foam
- Great demulsibility
The FPC COMP M Series oils are suitable for antiwear hydraulic fluids according to:
- Cincinnati Machine P-68, P-69, P-70
- Denison HF-0, HF-1, HF-2
- DIN 51524, Part 2 and 3 (HLP, HVLP)
- ISO 6743/4 (HM, HV)
- ISO 11158 (HM, HV)
- AFNOR NF E 48-603 (HM, HV), SS 155434
- SEB 181 222
- U.S. Steel 126, 127 and 136
The FPC COMP M Series oils are suitable for compressor oils according to:
- DIN 51506 (VBL, VCL, VDL)
- ISO / DP 6521 (DAA, DAB, DAH, DAG)
