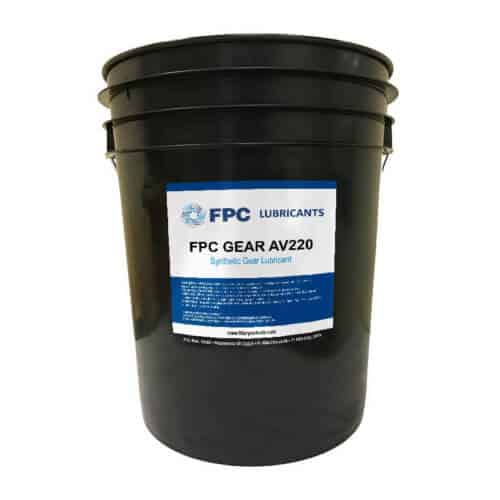

Description
The FPC GEAR AV Series are synthetic and have been formulated from premium polyalphaolefins (PAO) base fluids for enclosed gear systems requiring ashless antioxidants and anti-wear. These oils have been designed to provide proper lubrication under hydrodynamic and mild boundary lubrication conditions. They are recommended for gear systems where moderate loads and high temperatures are expected, including worm gears containing soft metals such as bronze, brass and copper.
Cross-Reference
This lubricant is equivalent to the following products.
| Company | Product |
|---|---|
| Mobil | SHC 630 |
Technical Information
| TYPICAL PROPERTIES | TEST METHOD | FPC GEAR AV220 |
|---|---|---|
| ISO Grade | ASTM D2422 | 220 |
| Viscosity @ 40°C, cSt | ASTM D445 | 230.4 |
| Viscosity @ 100°C, cSt | ASTM D445 | 24.14 |
| Viscosity Index | ASTM D2270 | 131 |
| Flash Point, °C/°F | ASTM D92 | 262/504 |
| Pour Point, °C/°F | ASTM D97 | -35/-31 |
| Copper Corrosion | ASTM D130 | 1b |
| Rust Prevention | ASTM D665 | Pass |
| Evaporation, % | ASTM D972 | < 1% |
| Specific Gravity | ASTM D1298 | 0.87 |
FPC Lubricants are proudly manufactured in the USA, under the strictest ISO 9001:2015 quality management standards.
Typical Industrial Applications
- Hydraulic systems
- Blowers
- Enclosed gear units, i.e. spur, helical, bevel & worm gears
- Plain and roller contact bearings
- Pulp & paper machines
- Circulating and splash lubricated systems
- Mist systems
Performance Benefits
- Synthetic lubricant
- Wide temperature range
- Low pour points
- High flash points
- Increased thermal & oxidative stability
Consult your equipment’s owners/service manual to ensure the proper ISO grade is chosen to meet the requirements specified by the the equipment manufacturer.
