Description

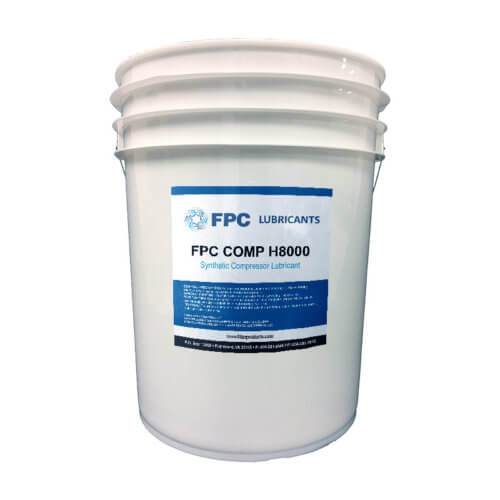

FPC COMP H8000 is a synthetic compressor oil formulated from the highest quality polyalphaolefin (PAO) base oils with a superior proprietary additive package to achieve long life. This long life compressor lubricant provides significantly improved wear, oxidation and lubricity over the currently available H-1 food grade synthetic oils allowing the service life to increase by 50% to 100%. Dependent upon the rotary screw design, FPC COMP H8000 is able to give a service life of up to 8,000 service hours in good operating conditions.

Cross-Reference

This lubricant is equivalent to the following products.

Company	Product
Atlas Copco	GA-FG
Atlas Copco	ROTO XTEND
Champion	RotorLub 4000 FG
CompAir	Cs-20
Curtis	Rs 4000 FG
Gardner Denver	Aeon 6000FG
Gardner Denver	Aeon AC FG
Kaeser	Sigma FG-460
Quincy	QuinSyn FG 46
Quincy	QuinSyn F
Sullair	Food Grade Pristine

Technical Information

TYPICAL PROPERTIES	TEST METHOD	FPC COMP H8000
ISO Grade	ASTM D2422	32/46
Viscosity @ 40°C, cSt	ASTM D445	42.0
Viscosity @ 100°C, cSt	ASTM D445	7.6
Viscosity Index	ASTM D2270	150
Flash Point, °C/°F	ASTM D92	261/501
Pour Point, °C/°F	ASTM D97	-50/-58
Foaming Sequences I, II, III	ASTM D892	< 20/0
Evaporation, %	ASTM D972	< 0.50
Four Ball Wear, 40 Kg., 1200rpm, 75°C, 1 hr., Scar Diameter, mm	ASTM D4172	< 0.45
Specific Gravity	ASTM D4052	0.85

Data Sheet Case Study: Mixer Case Study: Compressor

FPC Lubricants are proudly manufactured in the USA, under the strictest ISO 9001:2015 quality management standards.



Typical Industrial Applications

• Rotary screw compressors
• Vacuum pumps
• Meat processing plants
• Poultry processing plants
• Food processing (H-1)

Performance Benefits

• Outstanding wear and lubricity properties
• Less varnish formation
• Low pour point & high flash point
• Good corrosion protection
• Increase oxidative stability
• Excellent compatibility with elastomers, seals, plastics, and paints
• Complies with FDA 21 CFR 178.3570 H-1
• Deemed acceptable for use in Canada
